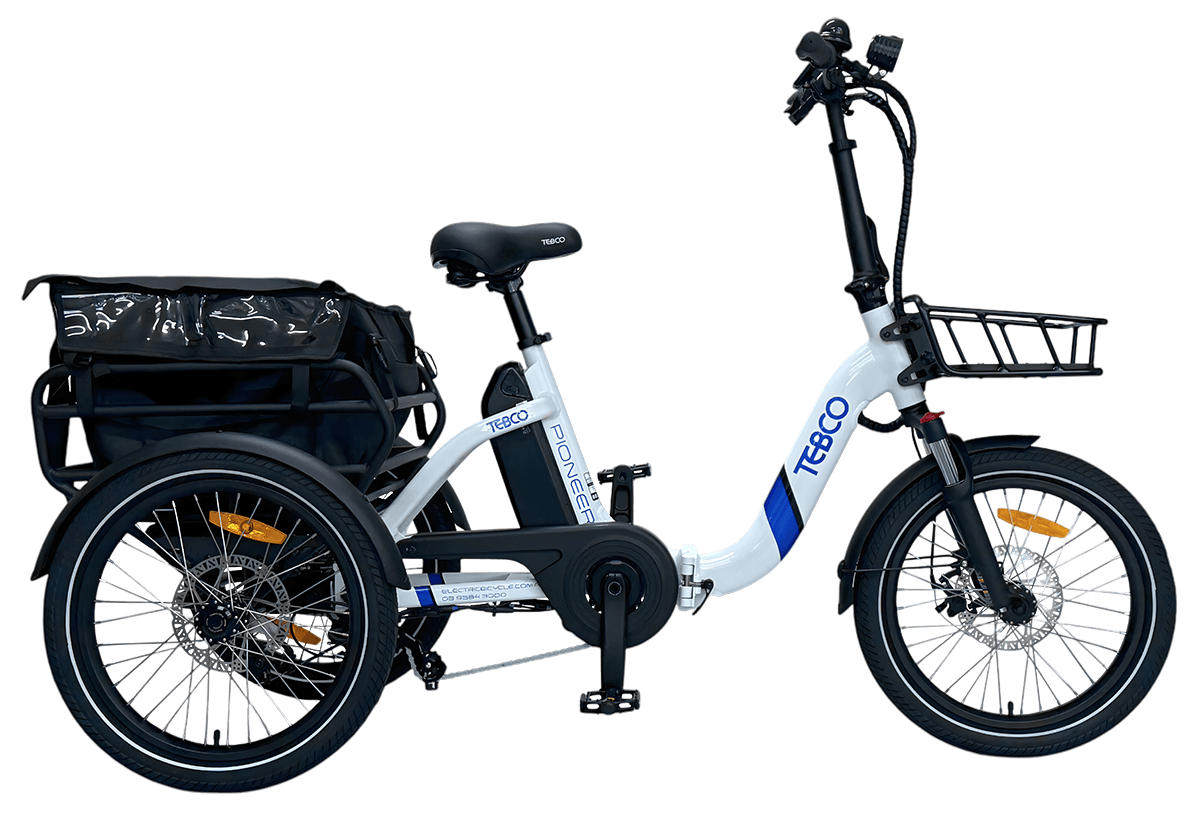

PIONEER
PIONEER
THE ULTIMATE FOLDING TRICYCLE!
DESIGNED FOR COMPACT STORAGE
& EASY TRANSPORTATION
FEATURES
20in Wheels Front and Rear
Weight– 38.9kg including battery
Max. speed 25kmh / Max. range 60km
250W Rear Wheel Drive

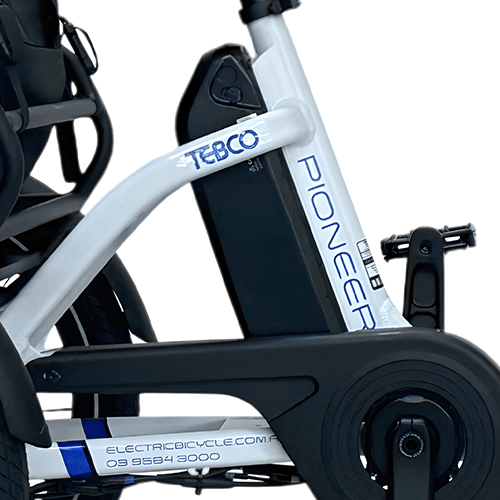

36V 13Ah (468Wh) Samsung Lithium Battery

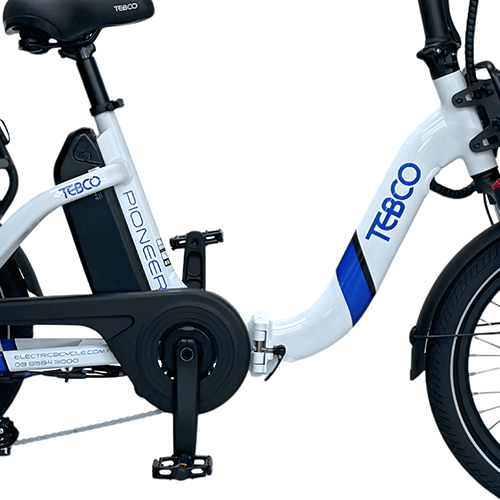

Folding Frame for Portability
7 Speed Electronic Shifting With Torque Sensor
High Quality 2.25in Innova Tyres
Colour Indicator / Trip Computer / Speedo / Battery Gauge
Disc Brakes Front and Rear
Rear Axle Differential for Enhanced Manoeuvrability
Heavy Duty Alloy Tube Basket with Utility Bag
No licence or registration required

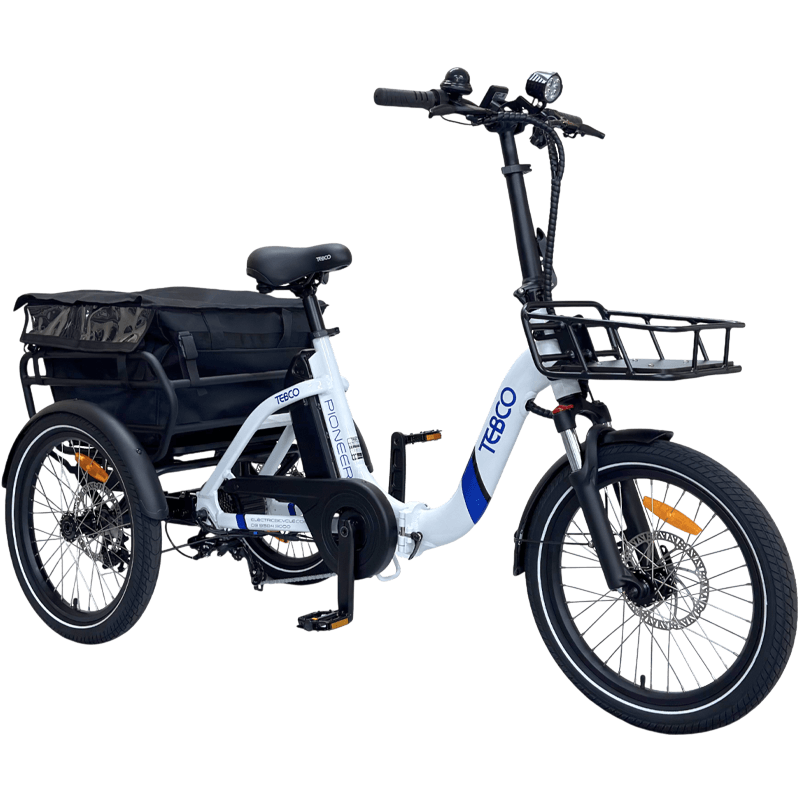

ULTIMATE FOLDING TRICYCLE
Designed for compact storage & easy transportation.

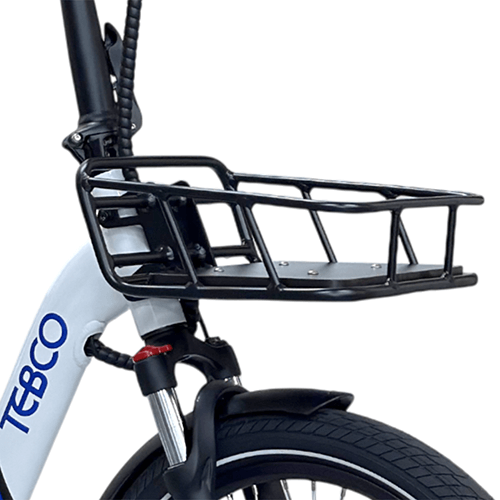

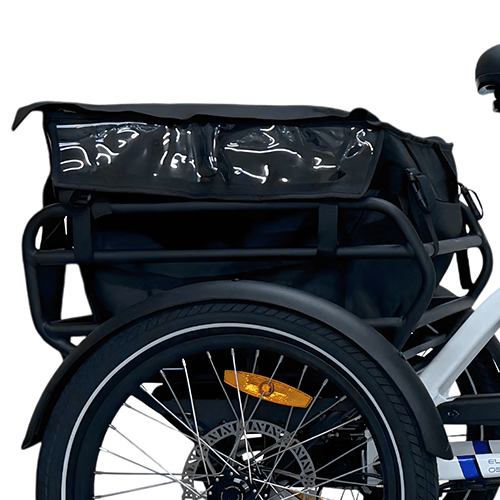

LARGE CARGO BASKET
Heavy Duty Alloy Tube Basket with Utility Bag.
POWER & COMFORT
Powerful 250W Rear Wheel Drive Motor and 13Ah Lithium Battery.
Mechanical
|
|
| Frame |
6061 Grade Alloy |
| Wheel Size |
20in 36h Front And Rear |
| Fork |
VIBEE WB325-20″ Teethless Headtube @28.6 *205mm, Travel Distance: 40mm |
| Handlebar |
ZOOM Mtb-Al-153 Alloy 620mm H:30mm |
| Stem |
FH05W 28.6*25mm(H) |
| Seatpost |
Alloy 33.9mm X 350mm |
| Seat Clamp |
Alloy 38.1mm |
| Saddle |
TEBCO Tush Cush AQ 6050 |
| Shifters |
Magene Electronic Shifting ED20 |
| Derailleur |
Shimano RD-TyY00 7 Speed |
| Rims |
C-Stars J25SE 20inch 36h Double Wall Alloy |
| Hubs |
Front Hub Alloy JA159F With Quick Release Rear Hub Alloy |
| Spokes |
F 13g 2.2mm / R 13g 2.2mm Stainless Steel |
| Tyres |
Innova IA-2131 20in*2.25in |
| Cranks |
Pb4b104s-42/32 170mm 42t |
| Pedals |
Wellgo F178 |
| Chain |
27,1/2*3/32″*1081, Z1ehx, 1/2″*1/8″*441 |
| Brakes Front |
Se-P1816 Front Disc Brake |
| Brakes Rear |
Se-P1816 Rear Disc Brake |
| Brake Levers |
Wuxing 108ppd/4 Locking With Power Cut Off |
| Mudguards |
Black Plastic 20in X 60mm |
Electrical
|
|
| Motor |
Bafang Sutto 20in 36v 250w M110 |
| Controller |
15Amp Magene CR30 |
| Battery |
36v 468wAh (13Ah) Lithium |
| Battery Life |
500 Cycles ≥70% Capacity |
| Battery Weight |
2.9kg |
| Display Panel |
Magene Full Colour |
| Twist Grip Acc Assy |
Wuxing 130X |
| Pedal Activation |
Magene SR20 Torque Sensor |
| Light Front |
XC-259A 50lux Static Illumination |
| Light Rear |
Cedite DR011 |
| Charger |
Keyu 36v 2Amp Lithium AU Compliant |
| Main Cable |
12 Waterproof Quick Release |
| Audible Warning |
Honka Hoota Black |
| Max Speed |
25kmh |
| Max Range |
60km 1:1 Pedal Assist |
| Tricycle Weight |
38.9kg Incl Battery |

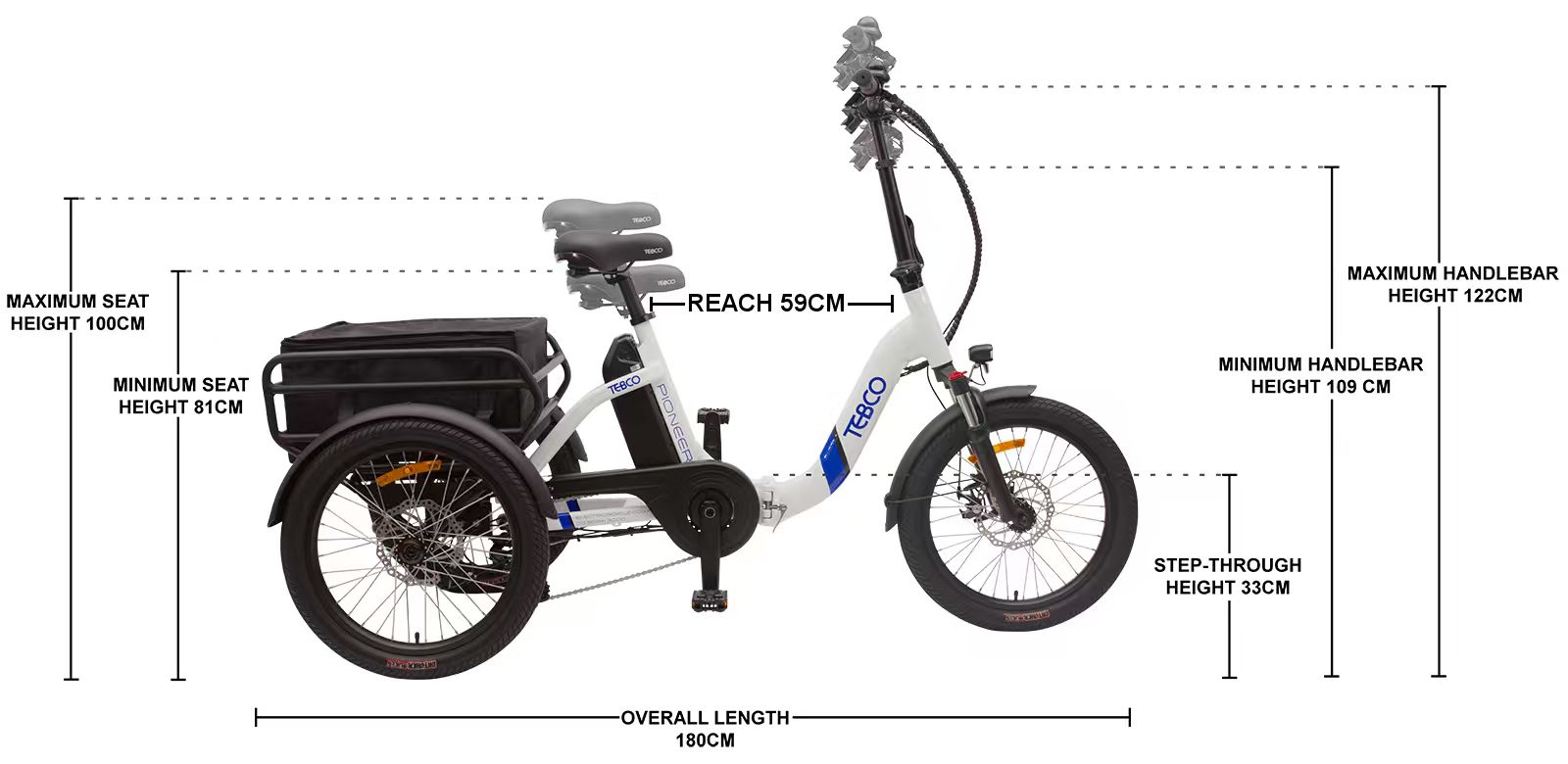

Sizing
|
|
| Length |
1830mm |
| Width |
720mm |

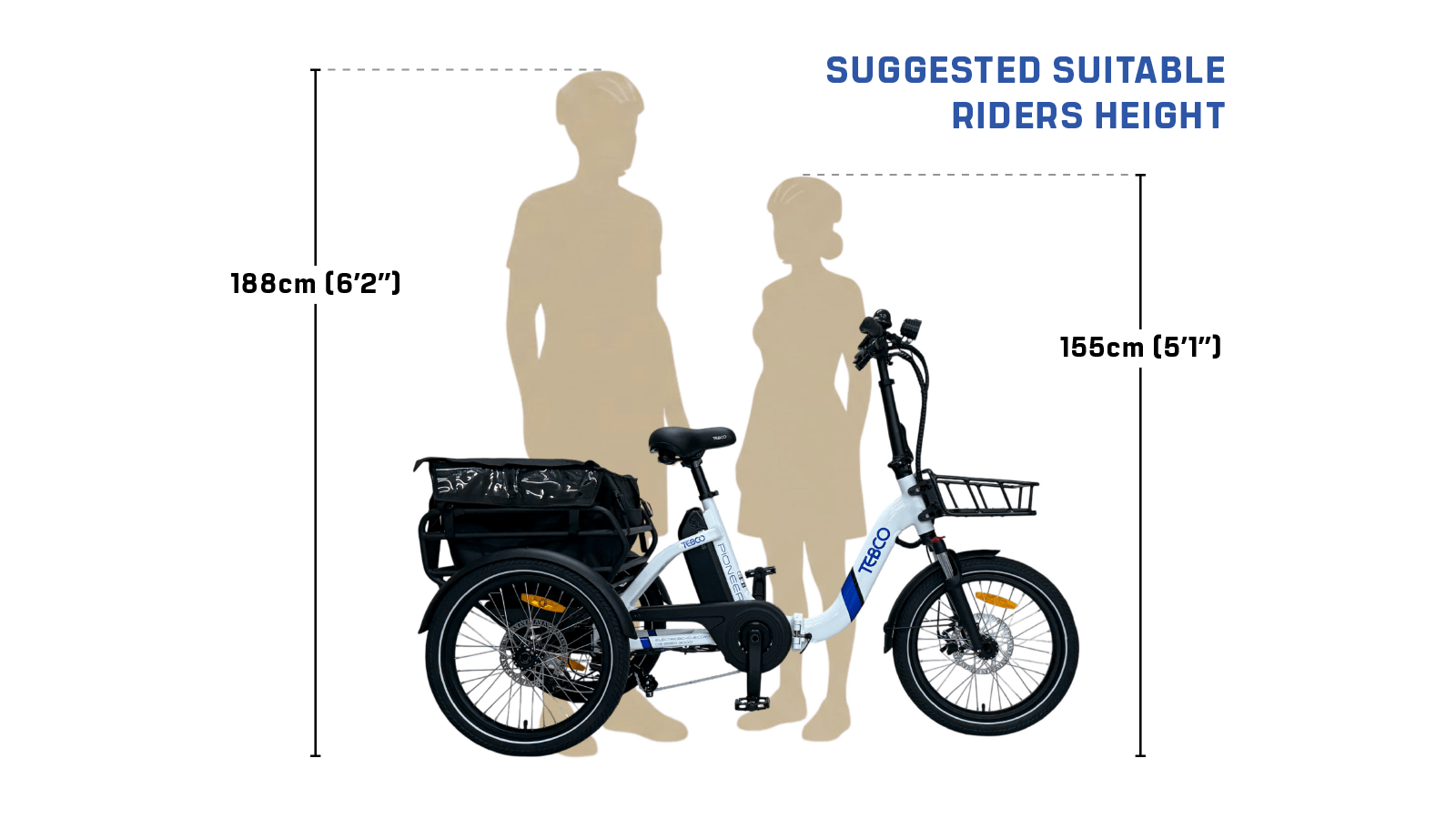

| Max Seat Height |
1020mm |
| Min Seat Height |
800mm |

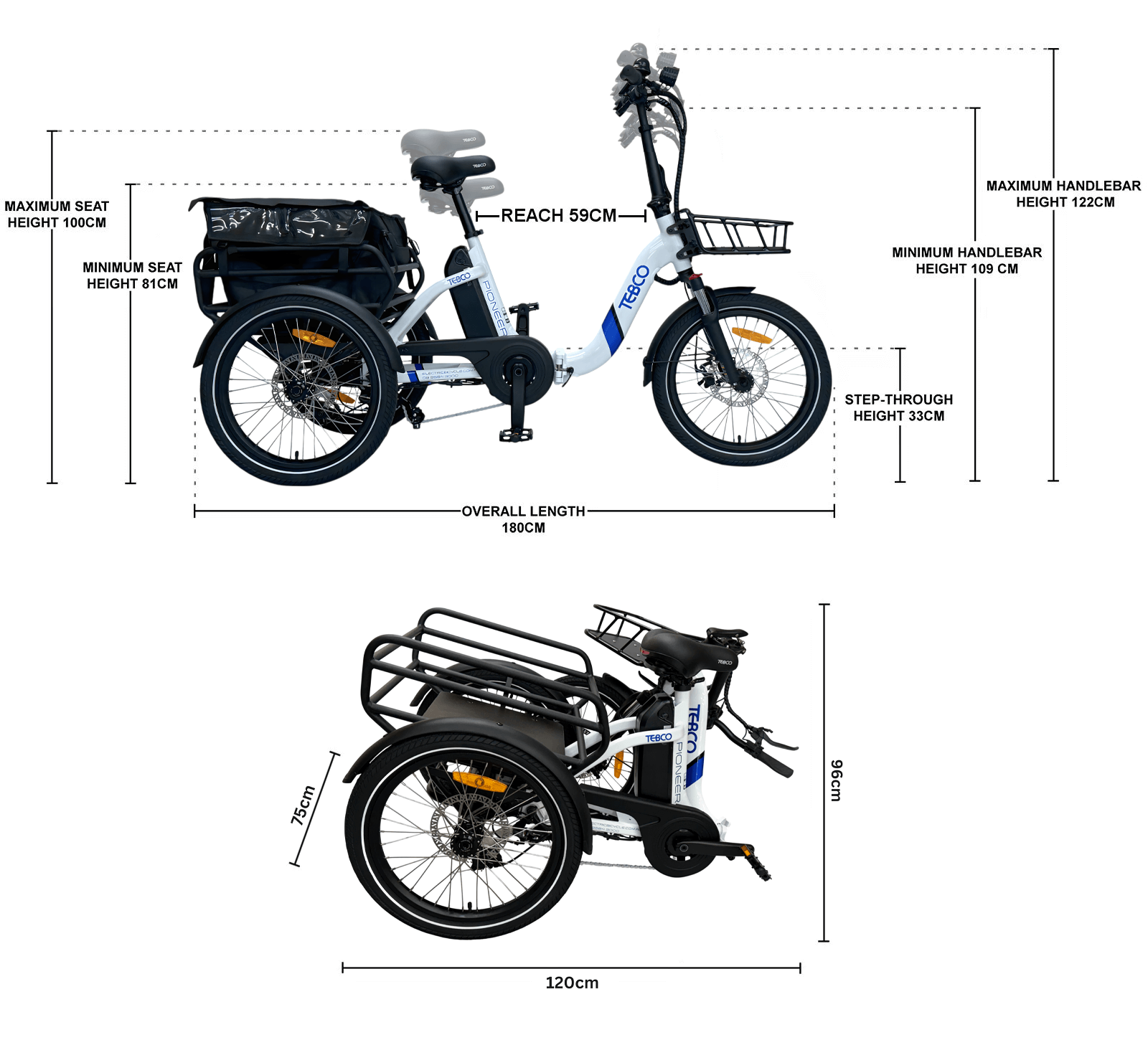

DIMENSIONS
