CROSSTRAIL
CROSSTRAIL
ELECTRIC CROSS COUNTRY BIKE AVAILABLE
NOW! ADVENTURE OR LEISURE - THIS BIKE HAS
ALL RAIL TRAILS AND TRACKS COVERED!
FEATURES
650B Wheels / alloy frame
Weight– 25kg including battery
Max. speed 25kmh / Max. range 100km
250W Motor / 9 Level Pedal Activation
36V 14Ah Samsung lithium battery
Latest in-frame battery design
High Quality 2.2in Kenda K1027 Tyres
7 Speed Shimano Trigger Shifters
Colour Indicator / Trip Computer / Speedo / Battery Gauge
Tektro Aries disc brakes front and rear
No licence or registration required
7 Speed Shimano Gearset
7 Speed Shimano Gears with Trigger Shifter for easy adjustment and riding on any terrain.
Rear wheel drive
250W Rear Hub Drive Motor with Disc Brake.
Diamond Frame
Diamond Shaped Frame with 650B Wheels and 2.2in tyres for riding comfort.
Front suspension
Front Suspension for riding comfort.
Battery Charging
Charge in the bicycle or remove to charge indoors.
Front Disc Brakes
Front and Rear Disc Brakes for improved riding experience.
|
Grey / Orange
|
Grey / Blue
|
Mechanical
|
|
| Frame |
Aluminum alloy material, 548 MTB eel Frame |
| Wheel Size |
650B 36H Front and Rear |
| Fork |
Suntour XCT-ATB DS 27.5″ Non-teethless 100mm Non Lockout |
| Handlebar |
PROMAX HB3188SP x 31.8 / R28 / Length: 700mm |
| Stem |
PROMAX MA-400 E:70MM & 28.6 x 70 x 31.8 / Height: 37mm |
| Seatpost |
PROMAX SP-252 & 31.6 x 350MM ENC |
| Seat Clamp |
PROMAX 335QX/Black |
| Saddle |
SR PL A059DRO Sporty Saddle |
| Shifters |
SHIMANO ASL-M3157RC / Length: 2400mm / 7S |
| Derailleur |
SHIMANO ARDTY500D |
| Rims |
PARWEIER P23D 27.5” |
| Hubs |
MODUS Aluminum Hub JA159F-DSE-QR |
| Spokes |
12g 2.4mm F / 12g 2.6mm R Stainless Steel |
| Tyres |
KENDA K1027 27.5 x 2.2in Black |
| Cranks |
PROMAX R42P/32 170MM 42T |
| Pedals |
WELLGO B087DU |
| Chain |
Z7 / RB / 116L / PPO |
| Brakes Front |
TEKTRO Aries Mechanical Disc |
| Brakes Rear |
TEKTRO Aries Mechanical Disc |
| Brake Levers |
WUXING 240PPD/4 Locking With Power Cut Off |
Electrical
|
|
| Motor |
XAD 36V / 250W / Model: 05RX 26” / Drop Out: 136mm |
| Controller |
15Ah LISHUI Brushless LSW1155-59M |
| Battery |
36V 14Ah / SS 3500MAh / 40pcs |
| Battery Life |
Up to 800 recharges from flat |
| Battery Weight |
2.4kg |
| Display Panel |
KEY DISPLAY KD286U |
| Pedal Activation |
KUNTENG Left Crank Mount |
| Charger |
Sans 36V 2Amp Lithium AU Compliant |
| Main Cable |
JULET 1T4 FZ-YH1T4A-2352A9-400MM |
| Audible Warning |
HONKA HOOTA Black |
| Max Speed |
25kmh |
| Max Range |
100kmh 1:1 Pedal Assist |
| Bicycle Weight |
25kg incl battery |
Sizing
|
|
| Length |
1880mm |
| Handlebar Height |
1080mm |
| Max Seat Height |
1060mm |
| Min Seat Height |
840mm |
| Step Over |
730mm |

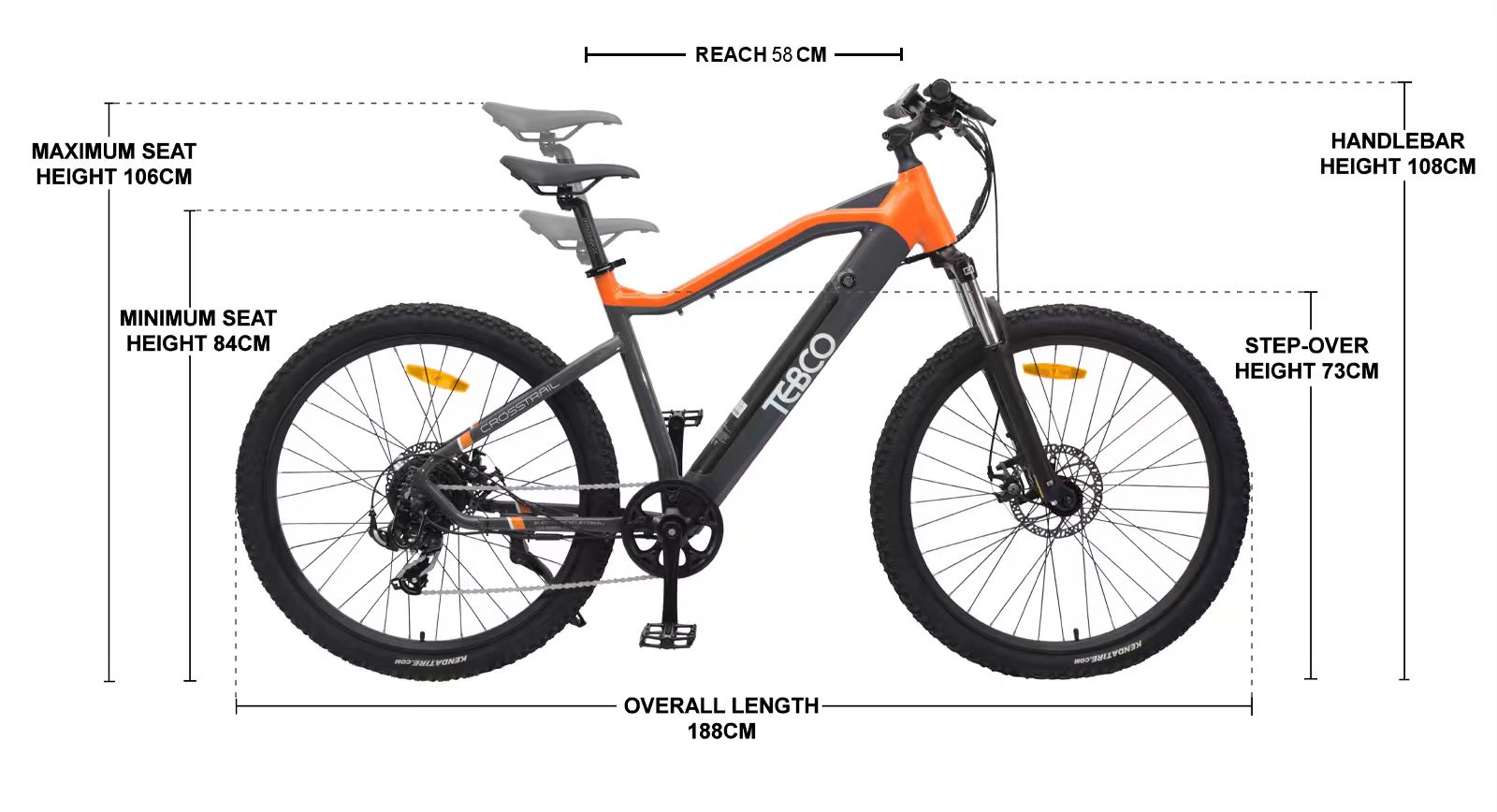

DIMENSIONS
