ECLIPSE
ECLIPSE
STEP-THRU URBAN MOBILITY
AT ITS FINEST. DESIGNED FOR
CONVENIENCE & FLEXIBILITY
FEATURES
20in Wheels / Step Thru Unisex Frame Design
Weight– 36kg including battery
Max. speed 25kmh / Max. range 80km
500W Rear Hub Drive (NSW Legal) OR
Rear Hub Drive (QLD, VIC, TAS, SA, WA, NT Legal)
48V 15Ah (720Wh) Samsung Lithium Battery
Rear Basket – Includes Basket Buddy Bag
High Quality Kenda Cursor 20in x 3in Road Tyres
7 Speed Shimano Trigger Shift
TEKTRO Hydraulic Disc Brakes 180mm Rotors
Suspension Front and Rear
Headlight / Taillight / Brake Light
No licence or registration required
REAR CARGO BASKET
Generous rear basket with included Basket Buddy Bag
LCD COLOURED DISPLAY
Coloured Display showing trip computer, speedo and battery gauge
URBAN MOBILITY
Flexible & convenient, the ELCIPSE is perfect for shorter trips
Mechanical
|
|
| Frame |
6061 Grade Alloy |
| Wheel Size |
20 x 3in Front and Rear |
| Fork |
Triple Crown Alloy Shoulder / Steel Leg Matte Black |
| Handlebar |
JY-BY144C Black Alloy matte 31.8*720mm H:180mm |
| Stem |
JY-DB2568 Black Alloy Matte E40*31.8*28.6*30 |
| Seatpost |
300mm 30.4 Promax Black Alloy Matte |
| Seat Clamp |
Alloy Promax Black |
| Saddle |
Retro Euro Squab Design |
| Shifters |
Shimano 7 SP Trigger Shift |
| Derailleur |
Shiumano Tourney 7 Sp |
| Rims |
MTSC35B Black 20 x 3in 12G 36H |
| Hubs |
Shunfeng Alloy |
| Spokes |
12 gauge 2.6mm Stainless Steel 130mm 132mm |
| Tyres |
High Quality Kenda Cursor 20 x 3in Road Tyres |
| Cranks |
A23-SS312C8 1/2″*3/32″*48T*170mmL Alloy Matte Black |
| Pedals |
FP-965A Alloy Black |
| Chain |
Z7 GY/BR 1/2″*3/32″*126 |
| Brakes Front |
TEKTRO HD-E350 Alloy |
| Brakes Rear |
TEKTRO HD-E350 Alloy |
| Brake Levers |
TEKTRO HD-E350 Alloy |
| Mudguards |
PP Matte Black 20-80-20in |
| Stand |
Adjustable Side Stand CK67-2 Black Alloy Matte 20in |
| Rear Rack |
Frame Inorp 25kg Capacity |
Electrical
|
|
| Motor |
48V 500 Watt ShengYi (NSW Only)
48V 250 Watt ShengYi (All other States) |
| Controller |
LISHUI Digital |
| Battery |
48V 15Ah (720Wh) Samsung Lithium Battery |
| Battery Life |
Up to 800 Recharges |
| Battery Weight |
3.85kg |
| Display Panel |
Full Colour KD86 With USB Port |
| Pedal Activation |
9 Level with P24L Pedal Sensor |
| Light Front |
YD-10 48V Flashing / Static Night Light |
| Light Rear |
Edge 48V Flaching / Static Night Light / Taillight |
| Charger |
54.6V2.8A, 110-240V 50HZ Australian Plug |
| Main Cable |
1T45 Trunk 1000mm |
| Audible Warning |
HONKA HOOTA Bicycle Air Horn |
| Max Speed |
25kmh |
| Max Range |
80km 1:1 Pedal Assist |
| Bicycle Weight |
36kg incl Battery |
Sizing
|
|
| Step Over |
40cm |
| Max Seat Height |
103cm |
| Min Seat Height |
83cm |
| Length |
174mm |
| Height |
116cm |

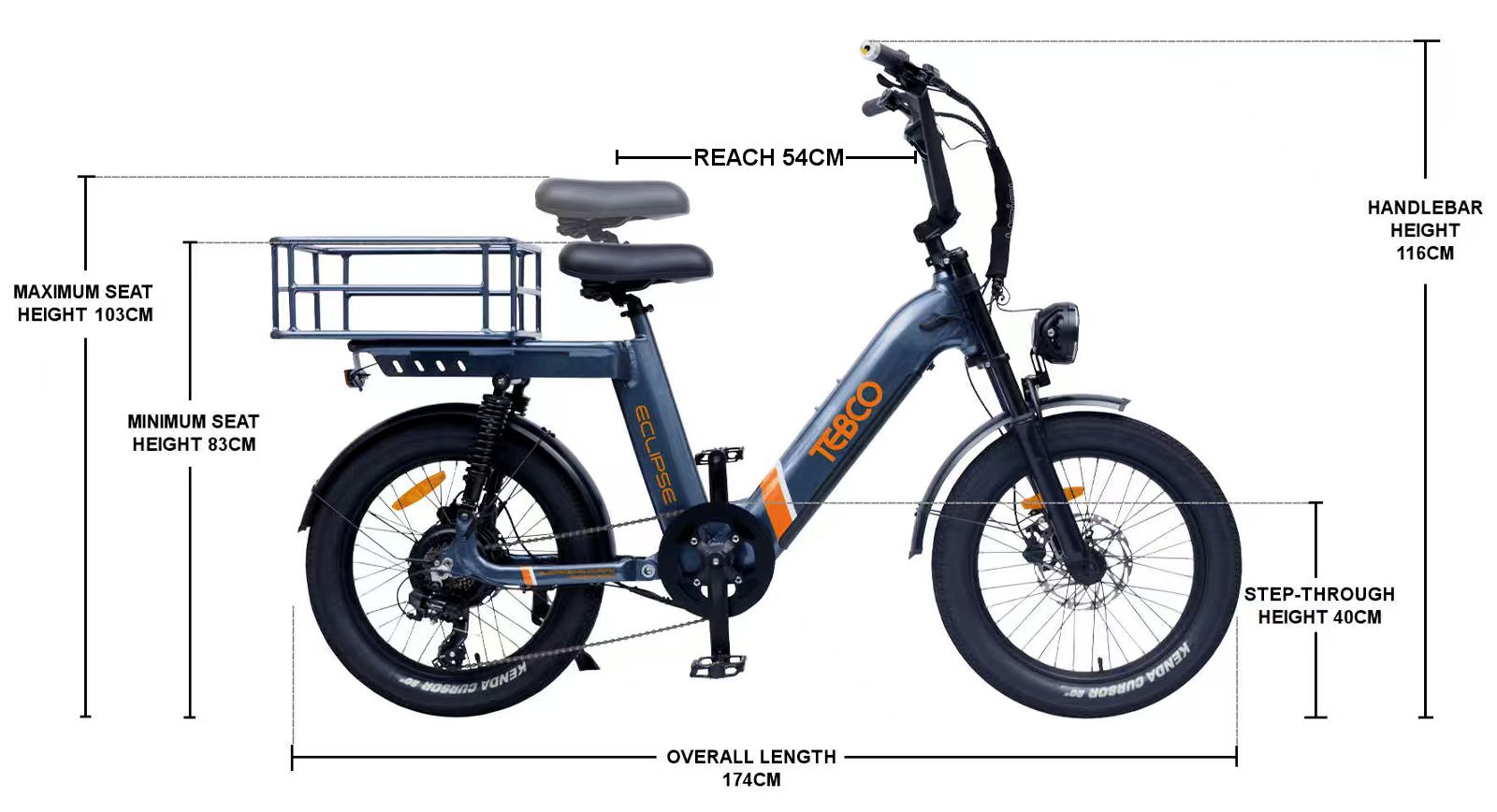

DIMENSIONS
