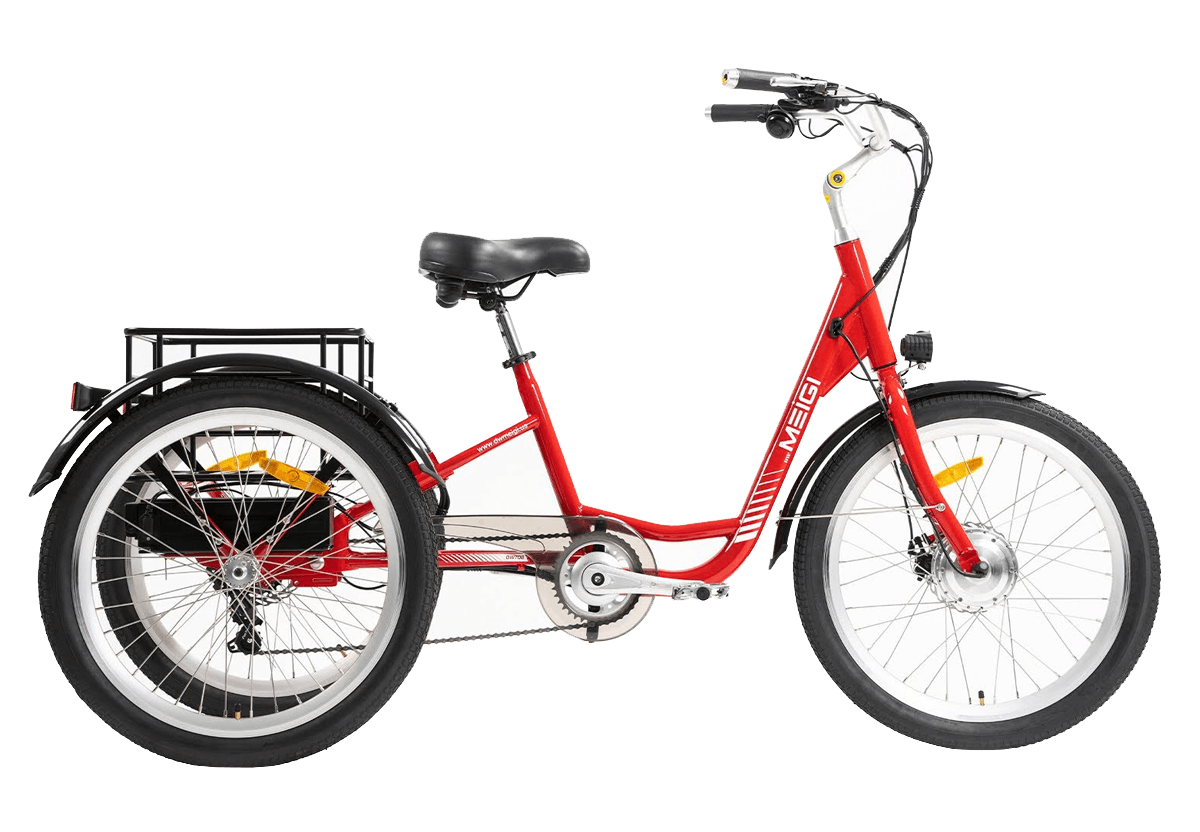

MEIGI USA
PROVIDES MOBILITY & INDEPENDENCE AT AN AFFORDABLE
PRICE, ENSURING YEARS OF TROUBLE-FREE PERFORMANCE.
FEATURES
Max. Carry Capacity – 180kg including rider & payload
24in front and rear wheels
Max. speed 25kmh / Max. range 60km
250W motor / 3 Level Pedal Activation
36V 13Ah Lithium Battery
LED PAS Level / Battery Gauge
7 speed Shimano trigger shift gears

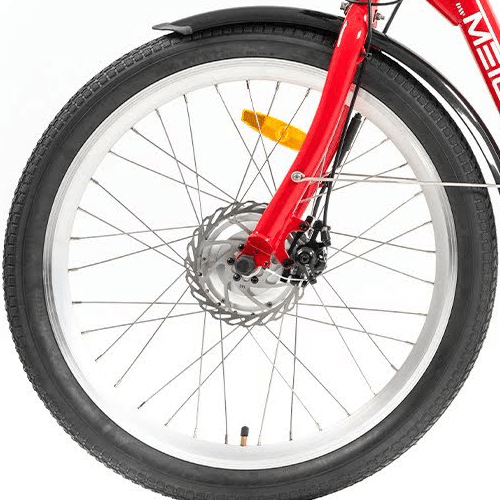

Disc Brake Front and Rear
High quality 2.1in Kenda K1047 tyres

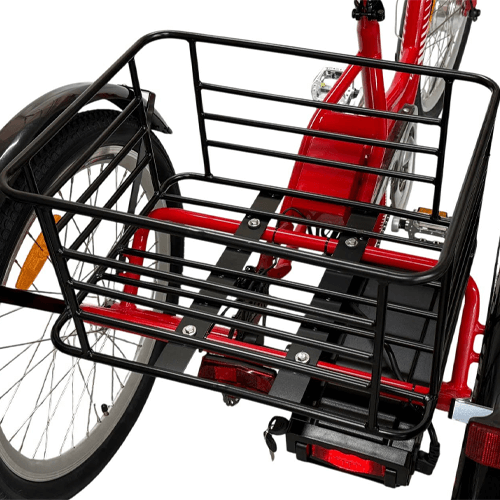

Rear cargo basket
No Licence or Registration Required
Mechanical |
|
|---|---|
| Frame | 24” Steel MG |
| Wheel Size | 24in 36H Front and Rear |
| Fork | Daywin Rigid Steel Fork |
| Handlebar | PROMAX HB-3202 |
| Stem | PROMAX MQ-525 |
| Seatpost | PROMAX SP-222 & 28.6 x 350mm |
| Seat Clamp | Alloy Quick Release 31.8mm |
| Saddle | QISHUAI 8001 |
| Shifters | SHIMANO SLM3157RC |
| Derailleur | SHIMANOARDFT35AD |
| Rims | PARWEIER 25DE 24Inch 36H Double Wall Alloy |
| Hubs | NUOD Aluminium |
| Hubs | MODUS Aluminium |
| Spokes | 13g 2.2mm F / 13g 2.2mm R Stainless Steel |
| Tyres | KENDA K927 24in x 2.125in |
| Cranks | PROMAX PRO-A38(92) 170MM 38T |
| Pedals | YONGHUA YH-121X |
| Chain | KMC Z7 GY/RB/130L |
| Brakes Front | JACK Mechanical Disc |
| Brakes Rear | JACK Mechanical Disc |
| Brake Levers | WUXING 108PPD/4 Locking With Power Cut Off |
| Mudguards | Black Plastic 24in x 65mm |
Electrical |
|
|---|---|
| Motor | 36V 250W Front Wheel Drive Motor |
| Controller | JIANNUO 15Amp Brushless DYC063601A |

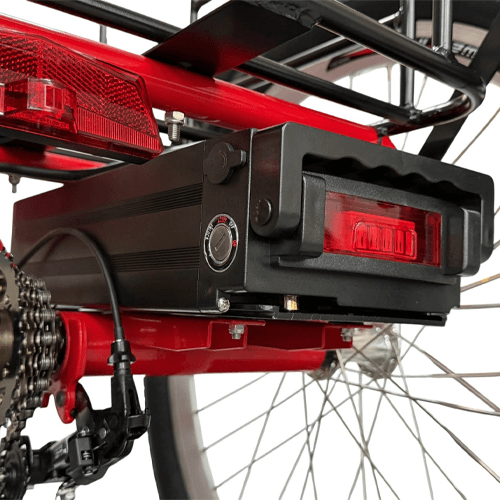

| Battery | 36V 13Ah Lithium Battery |
| Battery Life | Up to 800 recharges from flat |
| Battery Weight | 2.4kg |

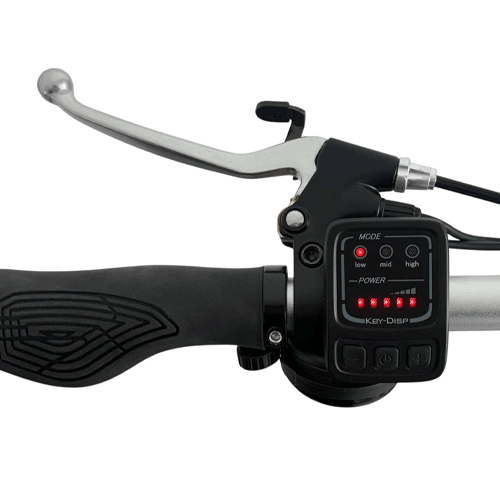

| Display Panel | Key Display KD26E LED |
| Pedal Activation | FEIJIAN 12 Magnet Left Crank Mount |
| Light Front | FEIJIAN LED Static Illumination |
| Light Rear | FEIJIAN LED Static Illumination |
| Charger | FUYUANDIAN 36V2A LITHIUM AU |
| Main Cable | HUTIAN 1T5 Waterproof Quick Release |
| Audible Warning | High Quaity Bell |
| Max Speed | 25kmh |
| Max Range | 60km 1:1 Pedal Assist |
| Tricycle Weight | 36kg incl battery |
Sizing |
|
|---|---|
| Step Over | 400mm |
| Handlebar Height | 1100mm |
| Max Seat Height | 980mm |
| Min Seat Height | 800mm |
| Length | 1900mm |
| Width | 760mm |

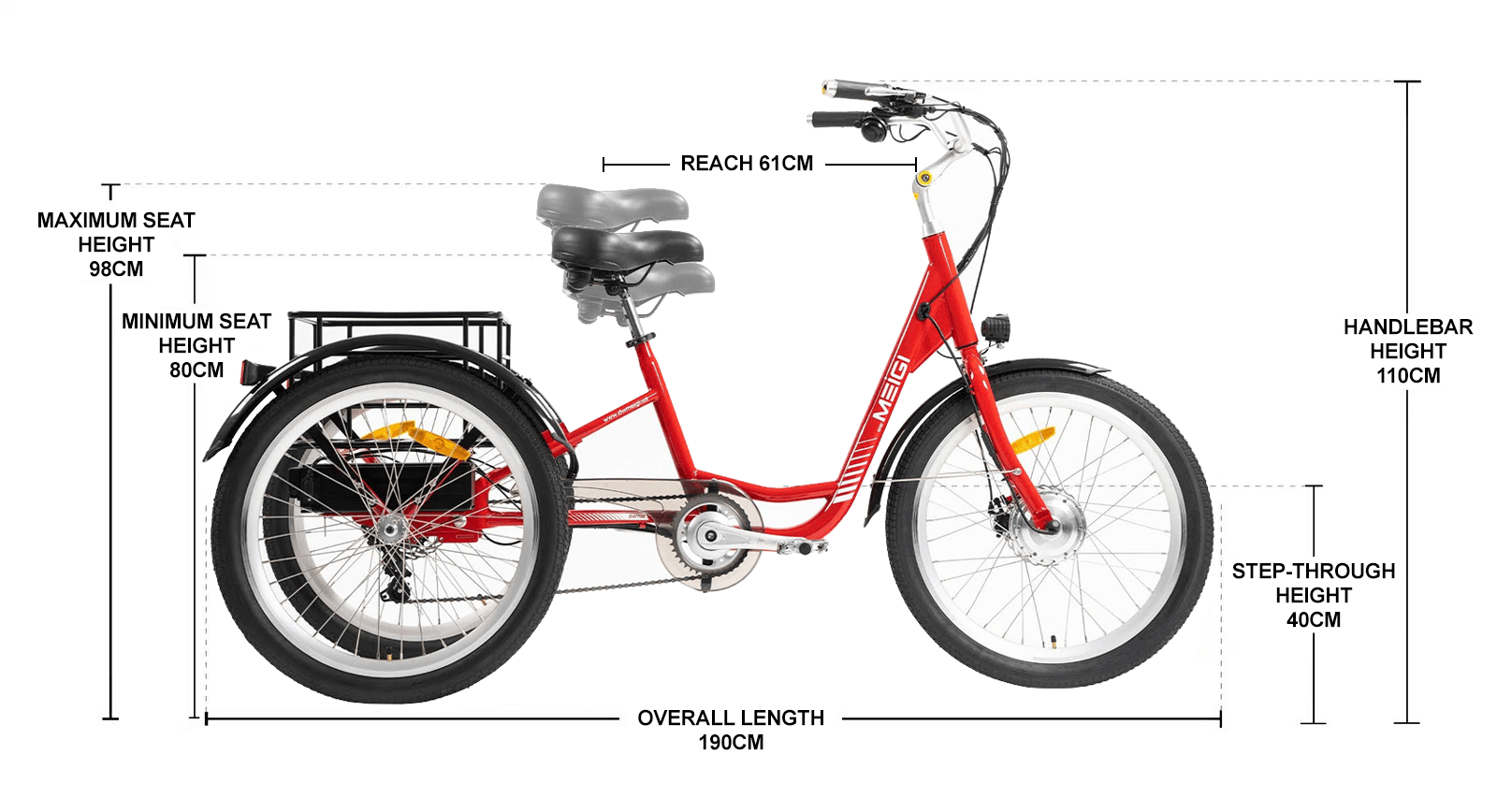

DIMENSIONS
MEIGI USA Tricycle |
$2099 |
Get in touch to order |
 |

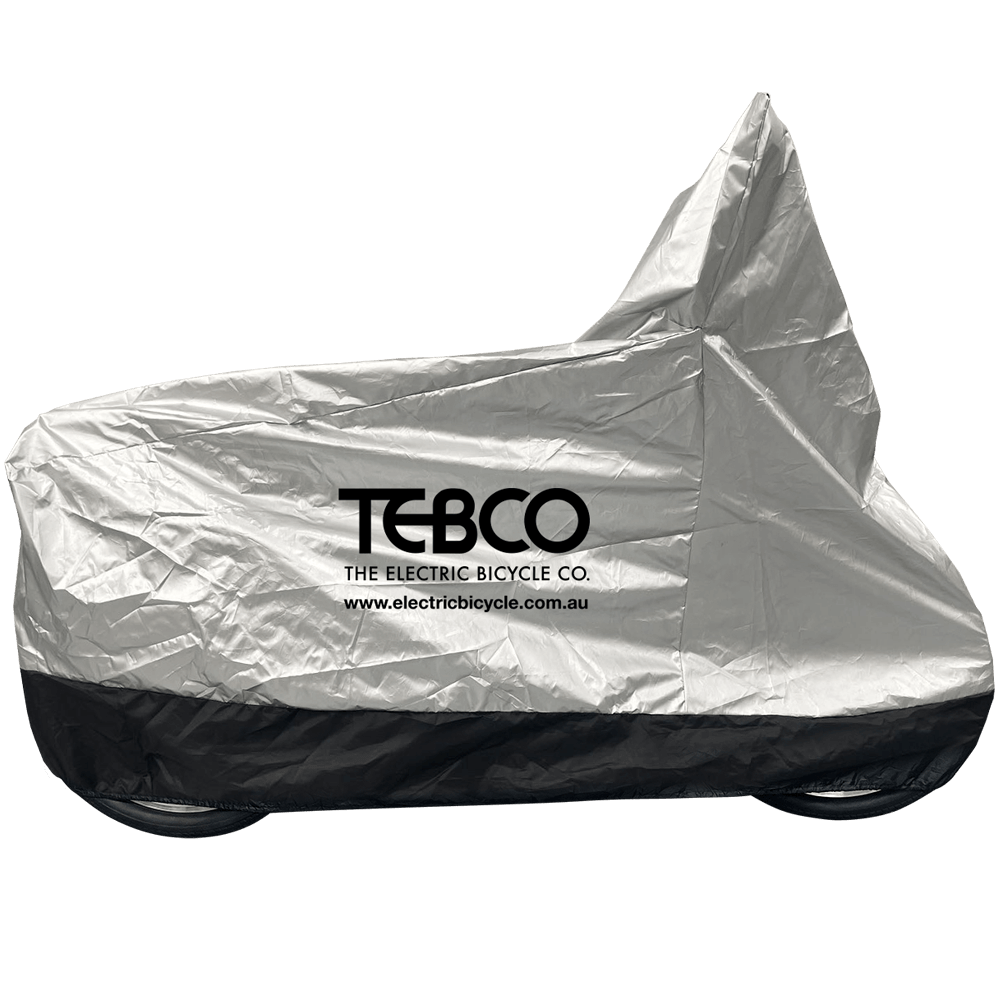

TEBCO TRICYCLE COVER |
Protect your TEBCO Tricycle with an optional TEBCO TRICYCLE COVER. Fits snugly over both TRANSPORTER and CARRIER models. Not included with Tricycle purchase. |
$77 |
Cover sold separately |
 |
MEIGI REAR BASKET BAG |
Keep your items safe and cool with an optional MEIGI REAR BASKET BAG. Designed to fit perfectly inside the large tubular steel basket. Not included with Tricycle purchase. |
$88 |
Bag sold separately |
